Series CIBUNIGAS
E165A...xP
Category:
Monoblock Burner
Brand:
CIBUNIGAS
Description
TECNOPRESS burners Low NOx Class 2 (< 120 mg/kWh) cover a wide range of applications from 320 to 1650 kW and are suitable either for heating generators with high back pressure or suction in combustion chamber. The bell-shaped combustion head is able to produce high performance flame.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
E165A | M-.XX.XP.IN.A.1.XX | 320 kW | 1650 kW | 230/400 V 3N ac | 2.2 kW |

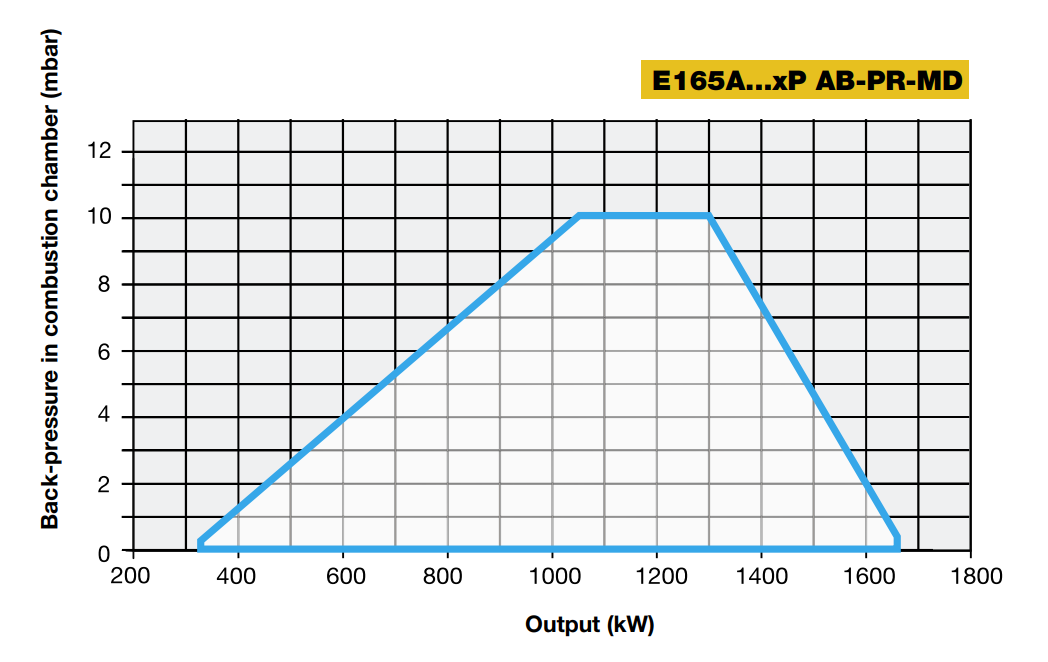

Performance Curves
