Series CIBUNIGAS
C83X...xR
Category:
Monoblock Burner
Brand:
CIBUNIGAS
Description
TECNOPRESS burners Low NOx Class 3 (< 80 mg/kWh), represent the average output range. This series is the result of the CIB UNIGAS great experience on burners with output up to 840 kW. It is charaterized by simple mechanical or electronic adjusting procedure and simple maintenance, thanks to the accessible placement of the components. These models are equipped with air inlet silencer to reduce the noise level.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
C83X | M-.XX.XR.IN.A.0.xx | 200 kW | 830 kW | 230/400 V 3N ac | 1.1 kW |

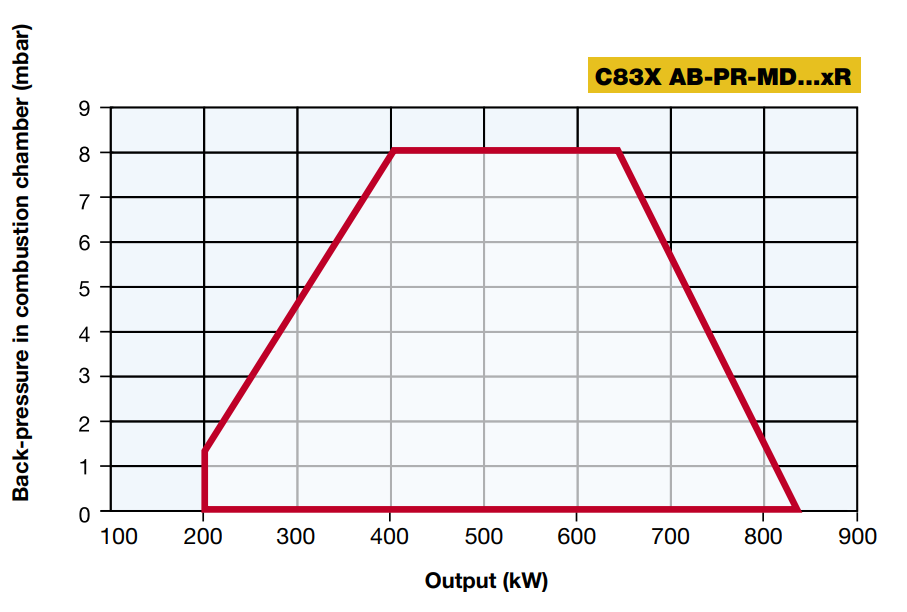

Performance Curves
