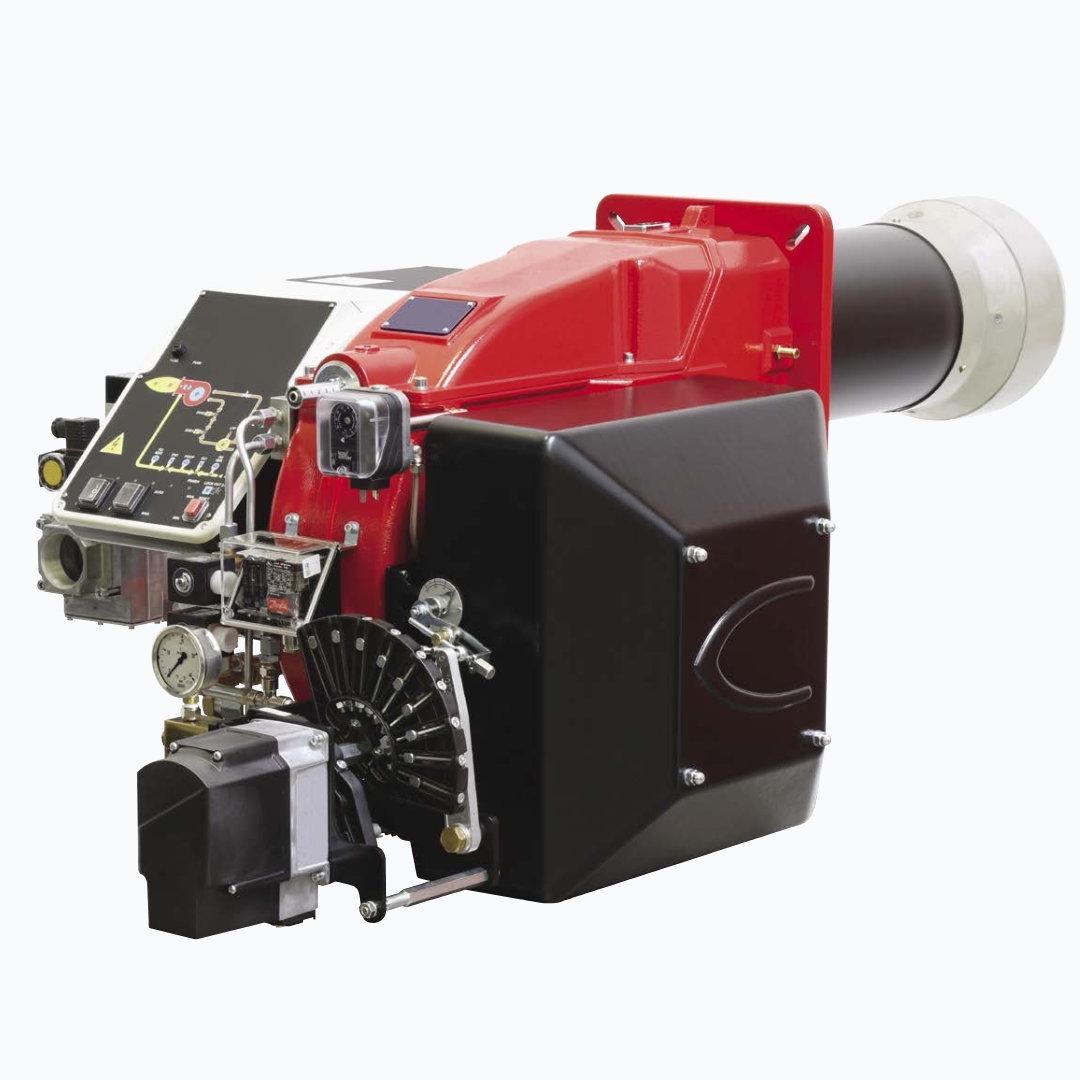

These burners are characterized by the “spiral” line typical of the series TECNOPRESS. They are suitable both for big and for small outputs up to 1900 kW. Moreover they are suitable to burn either natural gas or light oil thanks to the adjustable combustion head which allows a good performance with both fuels. The control panel is printed with a mimic diagram fitted with neon lamps to indicate the different stages of the burner operation. Like all the other models, they can work with standard and long combustion head. If the combustion head is shorter than the standard one, a spacer is available to adjust the insertion length into the combustion chamber. All regulations and settings devices are simple and practical for both fuels thanks to high quality leverages. This new series of burners integrates the well known performance and reliability characteristics and has the new air inlet system with built-in silencer and the new combustion head which guarantees low pollutant emissions (gas side < 80mg/kWh class 3 EN 676

Technical data
