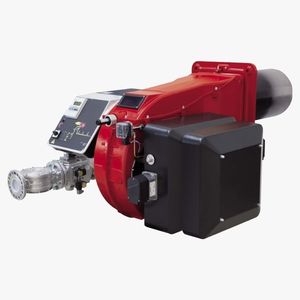

The new standard H type CINQUECENTO series Low NOx burners Class 2 (< 120 mg/kWh), made in aluminum housing with a backward curved centrifugal impeller is studied and developed to get high performance and efficiency combined with low emissions. This series with a maximum power of 6850 kW, is in this selection of product that is particularly competitive. The user-friendly application and maintenance are the strengths of these burners.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
H685A | M-.XX.SR.IN.A.1.XXX | 740 kW | 6,850 kW | 230 V 1N AC 50 Hz | 9.2 kW |
