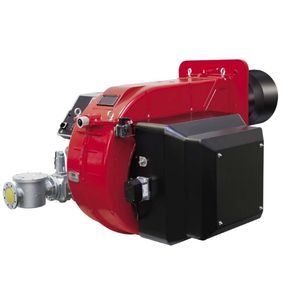

The new standard N type MILLE series Low NOx burners Class 2 (< 120 mg/kWh), made in aluminium housing with a backward curved centrifugal impeller is studied and developed to get high performance and efficiency combined with low emissions. The performance range of this array of products goes from 2.550 to 13.000 kW and its modulating ratio is 1:3. Higher modulating ratio (up to 1:10) is available, upon request, in those models with mobile combustion head and electronic control unit.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
N1300A | M-.XX.SR.IN.A.1.XXX | 2,000 kW | 13,000 kW | 230 V 1N AC 50 Hz | 30.0 kW |
