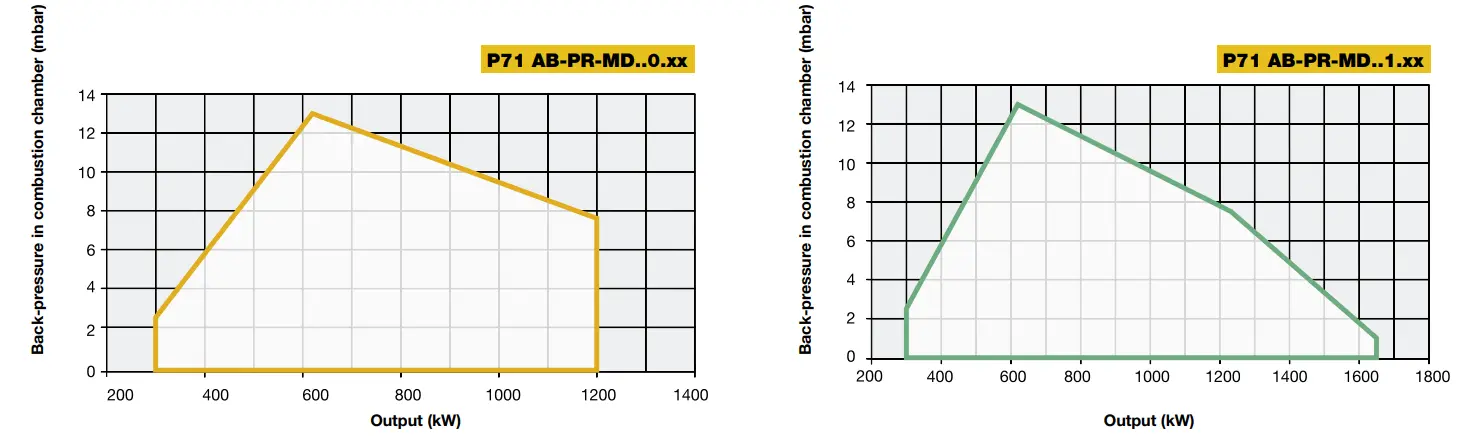

TECNOPRESS burners Low NOx Class 2 (< 120 mg/kWh), cover a wide range of applications from 300 to 1,650 kW and are suitable either for heating generators with high back pressure or suction in combustion chamber. The bell-shaped combustion head is able to produce high performance flame.
Technical Data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
P71 | M-.XX.X.IN.A.0.XX | 300 kW | 1,200 kW | 230/400 V 3N ac | 2,2 kW |
P71 | M-.XX.X.IN.A.1.XX | 300 kW | 1,650 kW | 230/400 V 3N ac | 2,2 kW |
