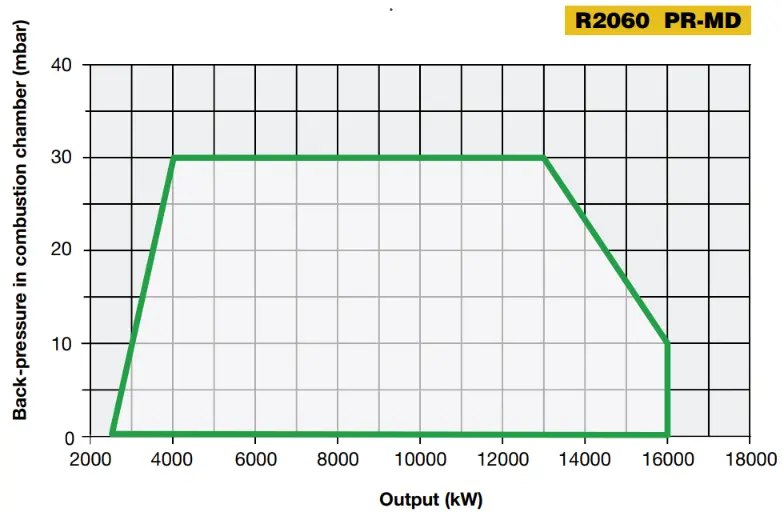

Designed to satisfy the most demanding industrial applications, the array “MILLE series” Low NOx Class 2 (< 120 mg/kWh) is the largest of the aluminium monoblock burners. It features an aluminium housing and a backward curved centrifugal impeller. The performance range of this array of products goes from 2550 to 13000 kW and its modulating ratio is 1:3. Higher modulating ratio (up to 1:10) is available, upon request, in those models with mobile combustion head and electronic control unit.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
R2060 | M-.XX.S.IN.A.1.XXX | 2,500 kW | 16,000 kW | 230 V 1N AC 50 Hz | 45.0 kW |
