Like all the other dual fuels models, this series perfectly combines the mechanical devices and systems typical of gas burners with the ones of light oil burners. In this way this series can burn the two flues separately. This is possible because these burners are equipped with an independent electric motor for the activation of the oil pump. As a consequence during gas firing, the oil pump motor does not operate and remains off. They are equipped with a high performance combustion head designed to achieve the maximum efficiency when they work on natural gas; combustion head is also equipped with a by-passing nozzle which, using a pressure regulator, can reach a turndown ratio 1:3. The control panel is printed with a mimic diagram fitted with neon lamps to indicate the different stages of the burner operation. The burner is provided by an UV photocell to detect the flame during operation.

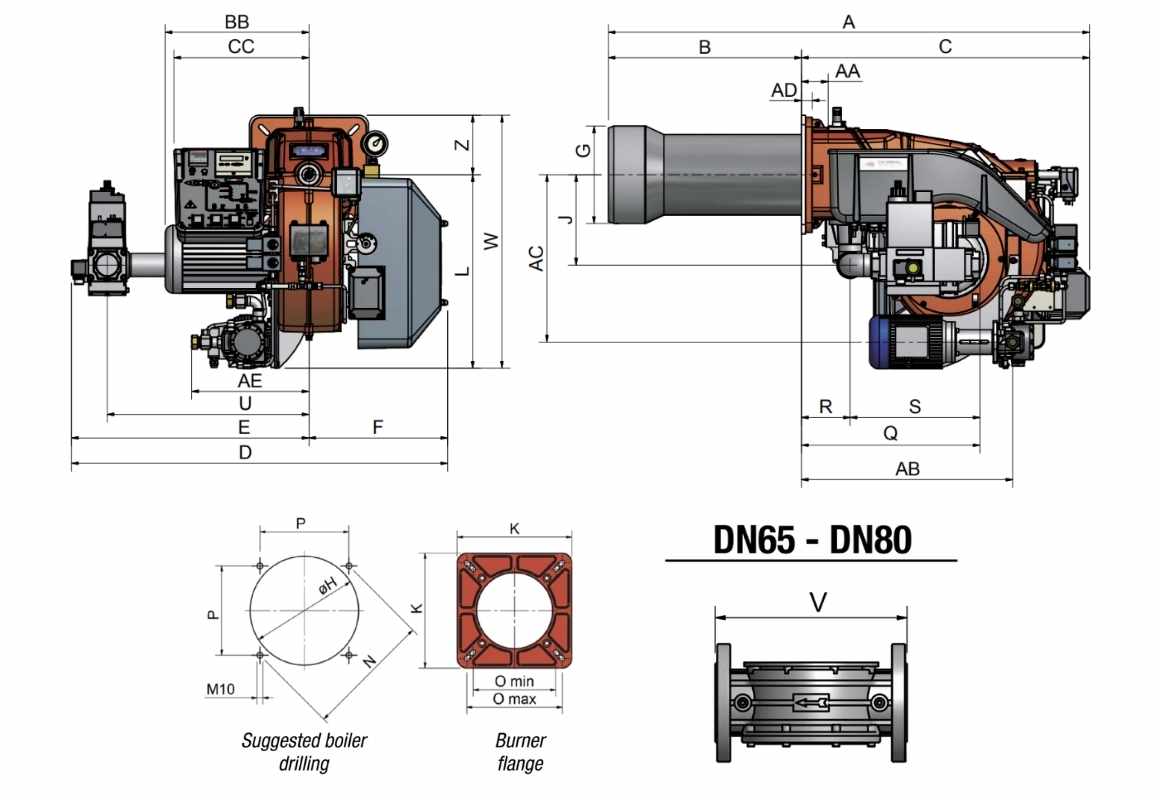

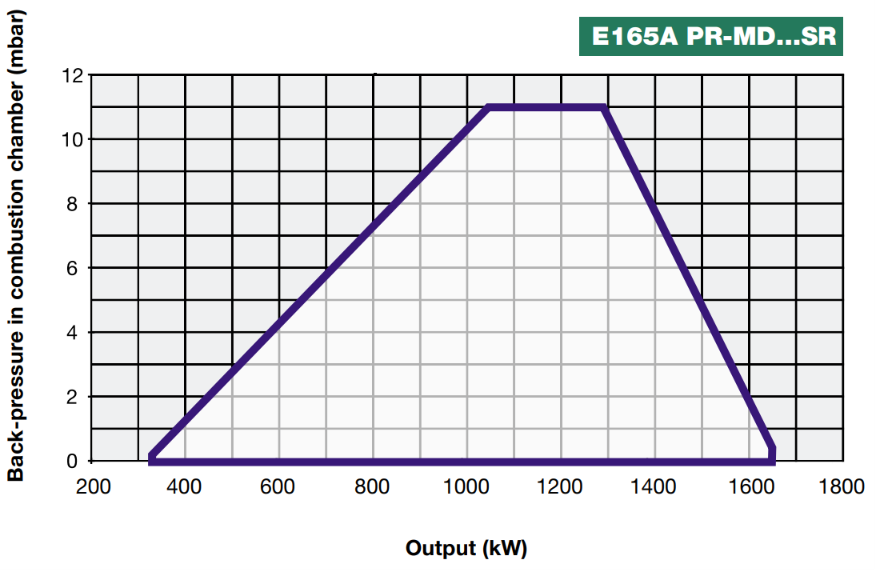

Technical data
