Thanks to the new line IDEA, CIB UNIGAS presents a brand new range of small and medium size burners designed to be aesthetic and functional giving at the same time prominence to innovative technologies. Compactness, versatility and the optimum configuration of all the electronic and mechanical components inside the burner, ensure minimum overall dimensions and higher efficiency. These light oil burners are equipped with a stainless steel combustion head whose length is adjustable according to boiler requirements. Light oil version fits a nozzleholder designed to reduce the air resistance and the special diffuser can be easily moved along a graduated gauge on the nozzle-holder. Like the gas burners, also the light oil range is designed to make servicing easier: universal pre-wired electrical plug connections avoid wiring mistakes; mechanical components are fitted onto a backing plate which can be moved and attached to special hinges on the burner; a special combustion air intake maximises the air pressure; the reduced thickness of the flange allows for exploitation of small spaces; the position of the combustion head is adjustable by means of a graduated screw.

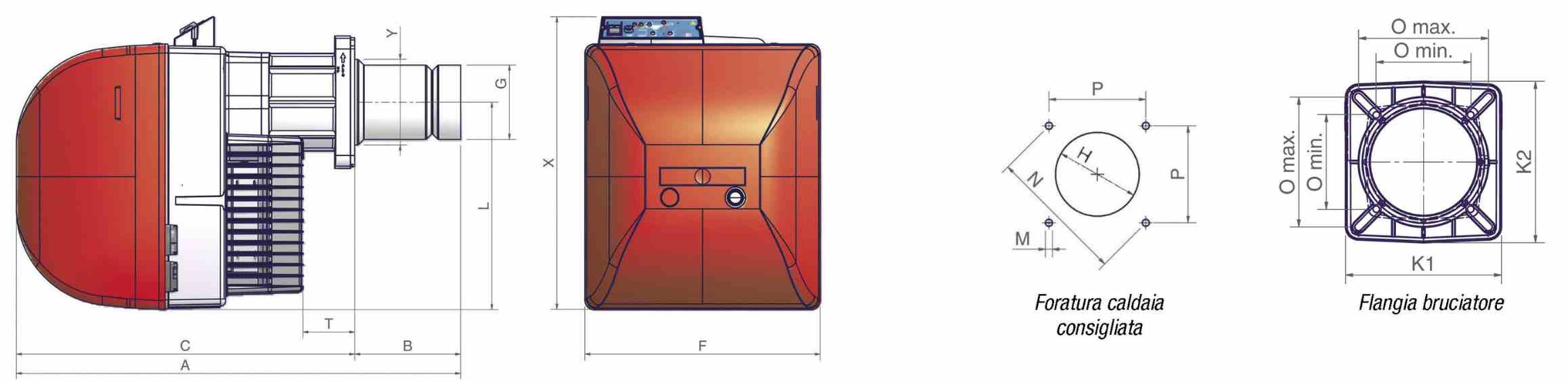

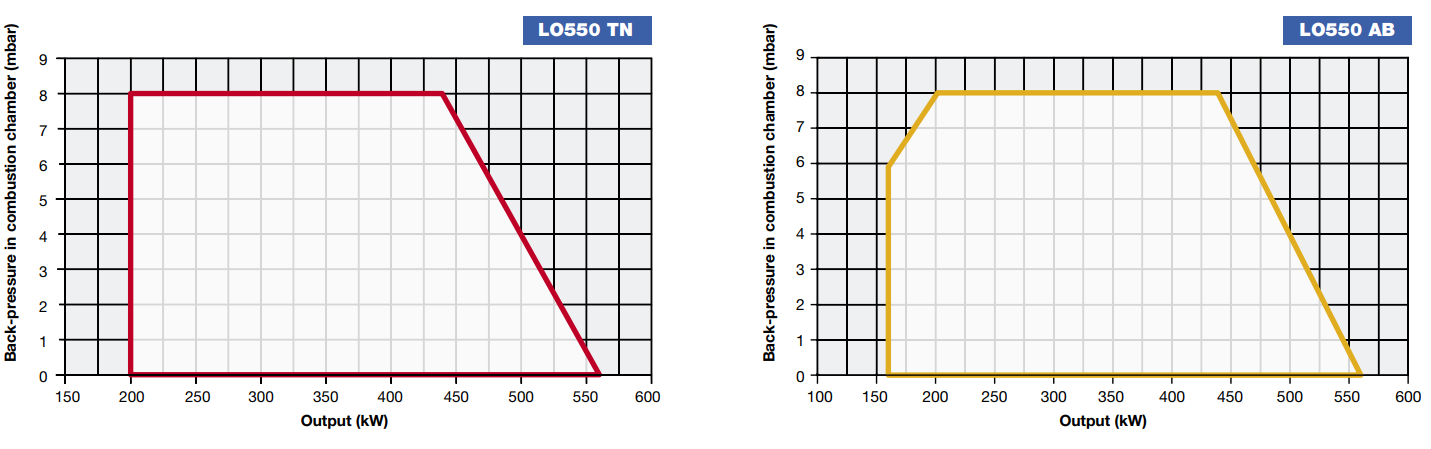

Technical data
