Description
With the new line IDEA Low NOx Class 2 (< 120 mg/kWh), CIB UNIGAS presents on the market a new conception of modern and functional burners for small and medium appliances with a tangential ventilation. These burners, which are the most powerful of the range IDEA, are particularly suitable to work on the boilers with high back pressure.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
NG280 | M-.TN.x.IN.A.0.xx | 185 kW | 420 kW | 230 V 1N ac | 0.37 kW |
NG280 | M-.xx.M.IN.A.0.xx | 115 kW | 420 kW | 230 V 1N ac | 0.37 kW |

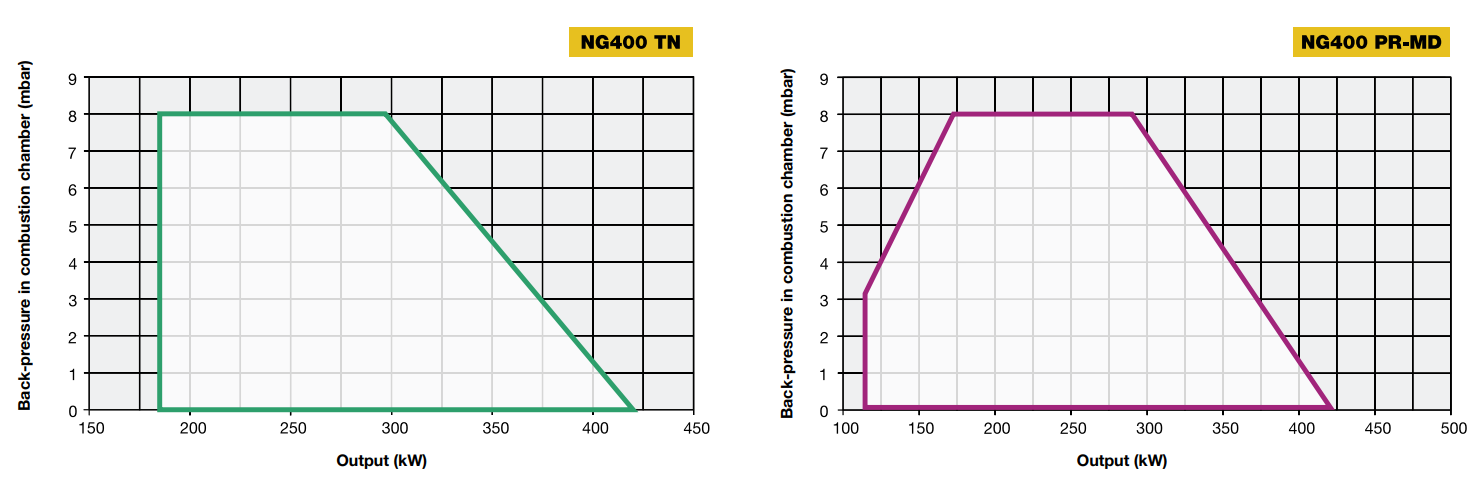

Performance Curves
