These burners with tangential ventilation are, in terms of dimensions and output, the smallest burners of the new line IDEA gas Low NOx Class 2 (< 120 mg/KWh) available in five different aluminium housings. NG70 burner can be arranged to use external combustion air on request. In this case the burner will be supplied with a watertight and airtight air intake, linked outside by means of a duct ten meters long.

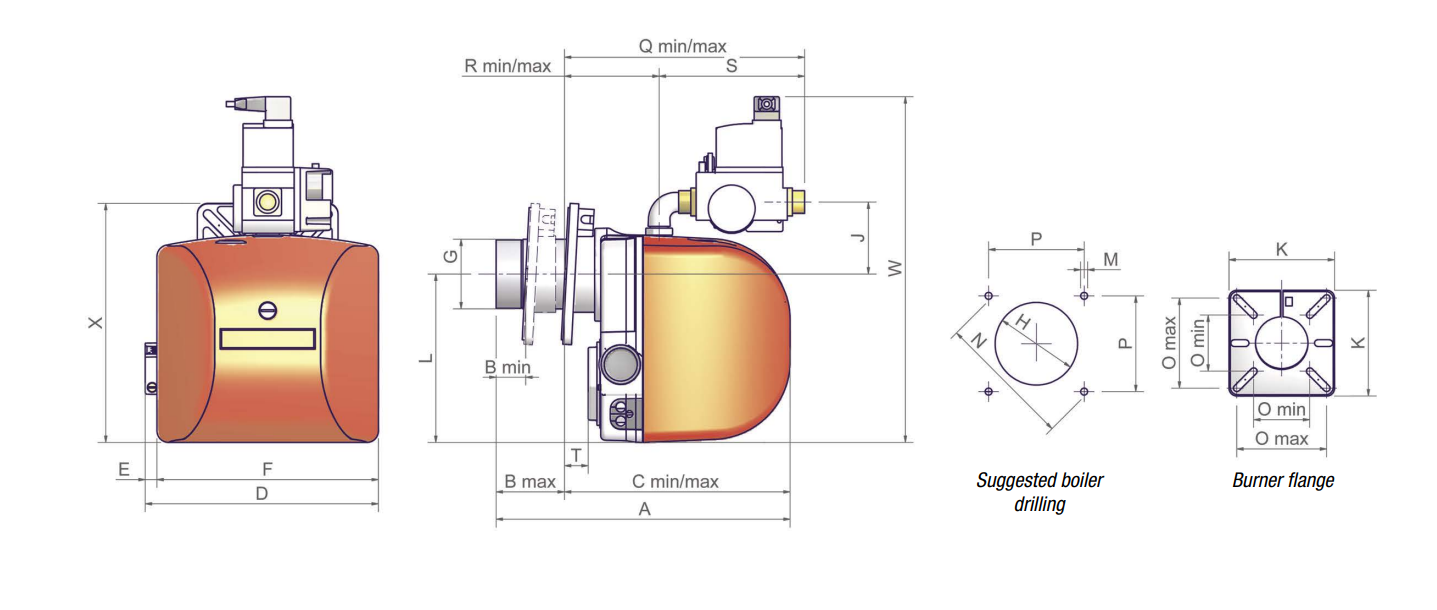

Technical data

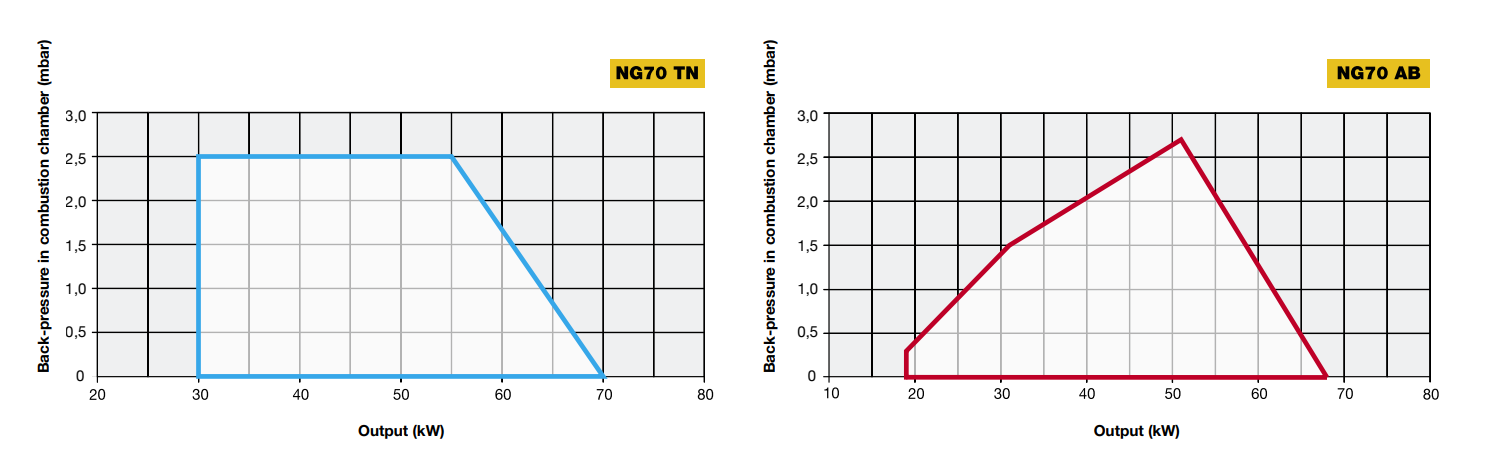

Performance Curves
