Description
The burners of the series IDEA Low NOx Class 3 (< 80 mg/kWh) covering this output range, have been provided with a very advanced and performing combustion head which ensure a stable combustion in all working conditions. The placement of the components inside the burner permits an easy and precise regulation and maintenance.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
NGX280 | M-.TN.X.IN.A.0.XX | 93 kW | 190 kW | 230 V 1N ac | 0.25 kW |
NGX280 | M-.XX.X.IN.A.0.XX | 60 kW | 190 kW | 230 V 1N ac | 0.25 kW |

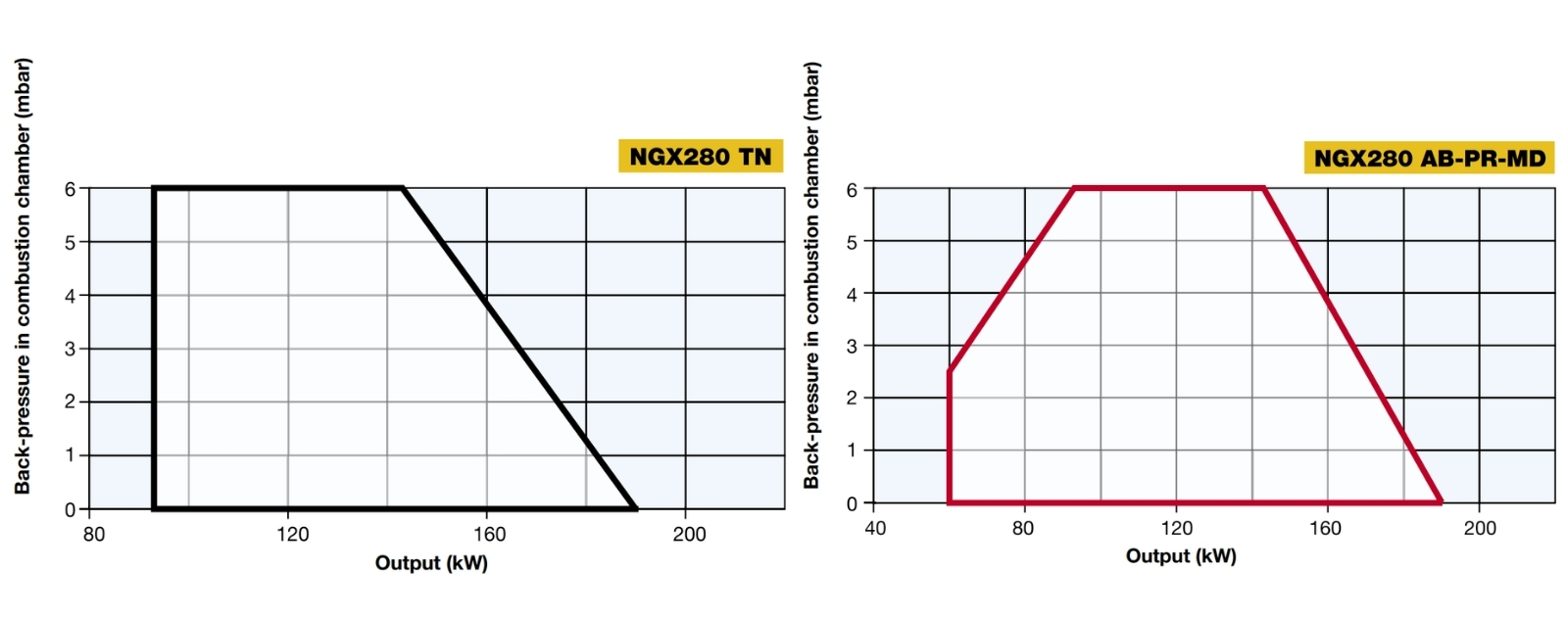

Performance Curves
