Description
This new generation of IDEA burners Low NOx Class 3 (< 80 mg/kWh), has been developed and built to ensure the lowest environmental impact. This is achieved thanks to the new combustion head that allows a staged air flow in order to let the flame burn progressively along the length of the combustion chamber.
Technical data
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
NGX70 | M-.TN.X.IN.A.0.XX | 40 kW | 65 kW | 230 V 1N ac | 0.10 kW |
NGX70 | M-.AB.X.IN.A.0.XX | 21 kW | 65 kW | 230 V 1N ac | 0.10kW |

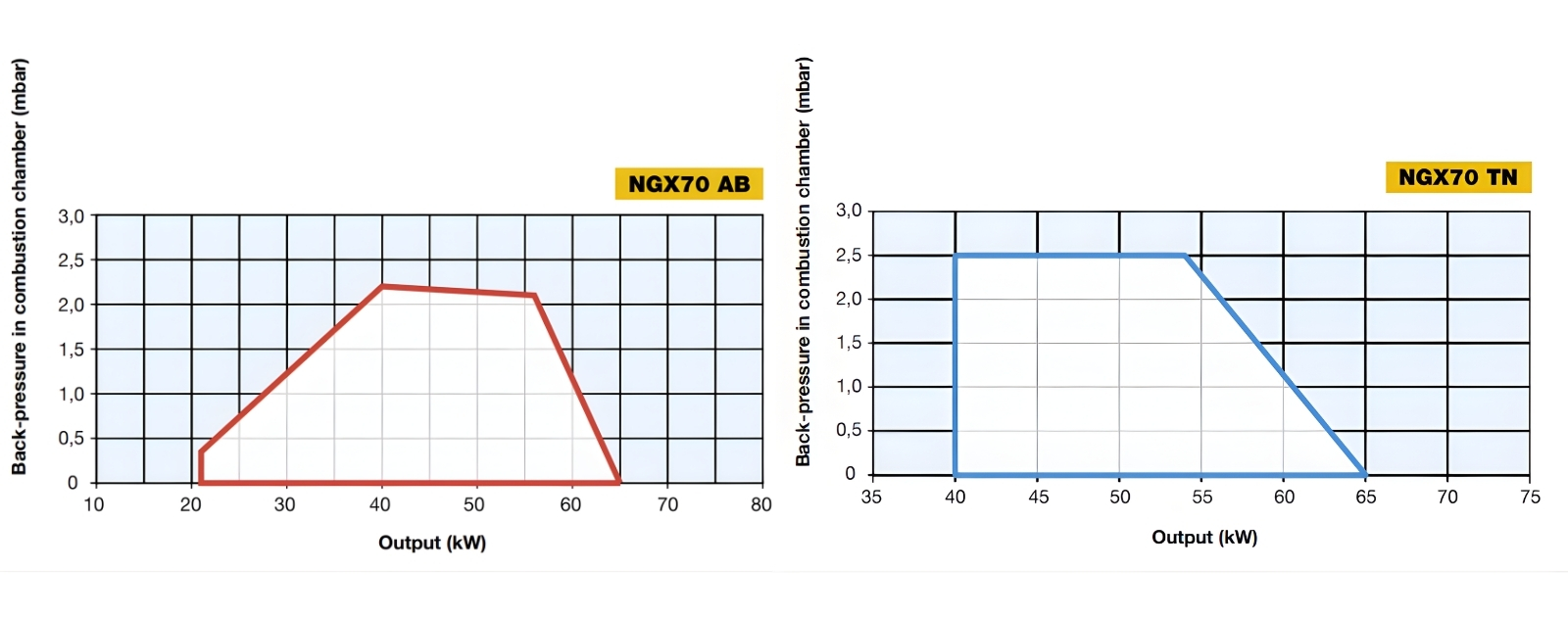

Performance Curves
