Description
TECNOPRESS burners Low NOx Class 2 (< 120 mg/kWh), cover a wide range of applications from 160 to 800 kW and are suitable either for heating generators with high back pressure or suction in combustion chamber. The bell-shaped combustion head is able to produce high performance flame.
Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
P61 | M-.xx.x.IN.A.x.xx | 160 kW | 800 kW | 230/400 V 3N ac | 1,1 kW |

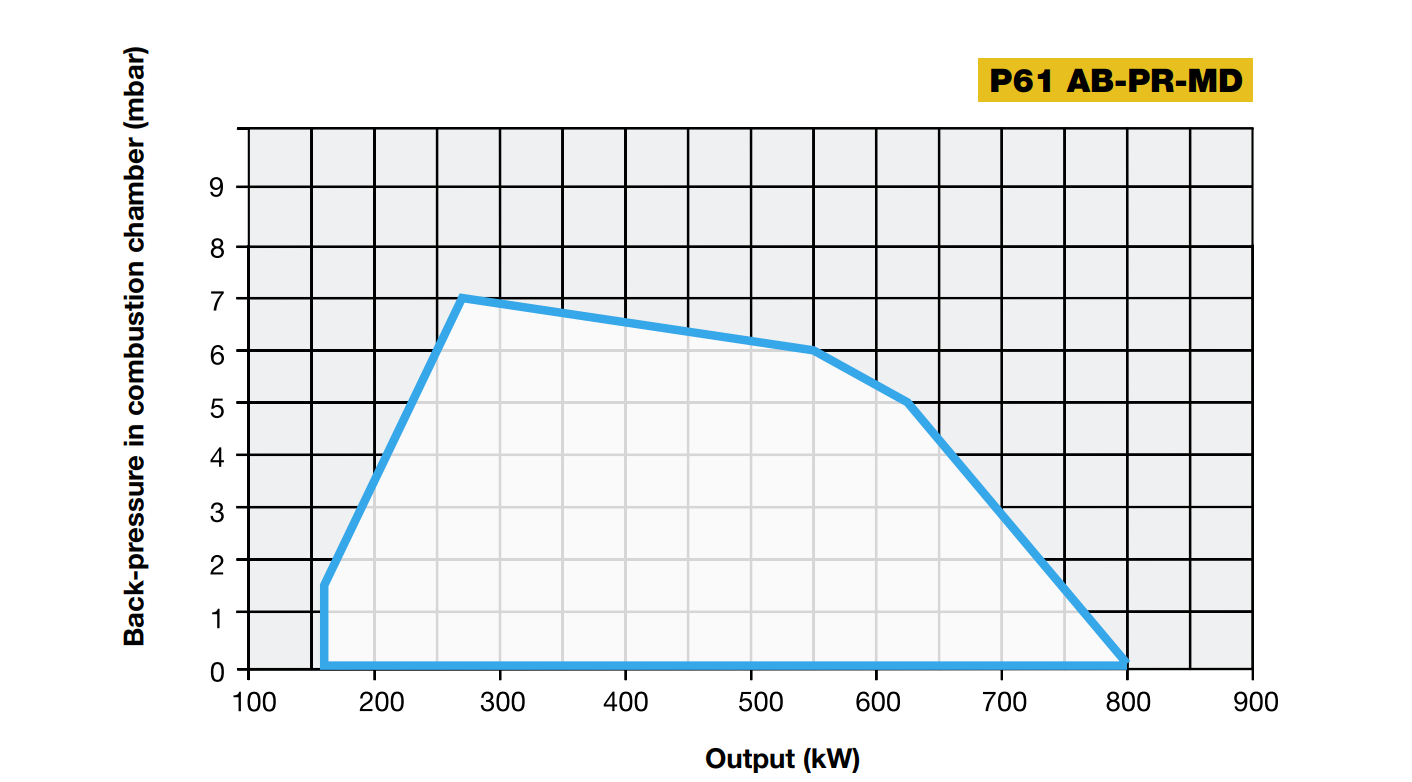

Performance Curves
