De Novo

PN70

Series CIBUNIGAS

PN70

Category: Monoblock Burner
Brand: CIBUNIGAS

Description

Our thirty years experience in the design and production of oil burners, has allowed us to develop and to produce a highly technical series of products renowned worldwide for their reliability. These burners are available for oil with standard viscosity up to 50 cSt at 50°C (7°E at 50°C). Upon request we can also supply a model for heavy oil up to 400 cSt at 50°C (50°E at 50°C). The oil heater consists of a tank with an electric element while a system of preset thermostats controls the regulation of the fuel temperature in order to ensure the optimum performance of the fuel used. Upon request we can supply the components necessary to ensure that the oil supply line complies with UNI 9248.

Type

Model

Power min.

Power max.

Power supply

Motor Fan

PN70

X-.XX.X.IN.A

291 kW

1047 kW

230/400 V 3N AC

2,20 kW

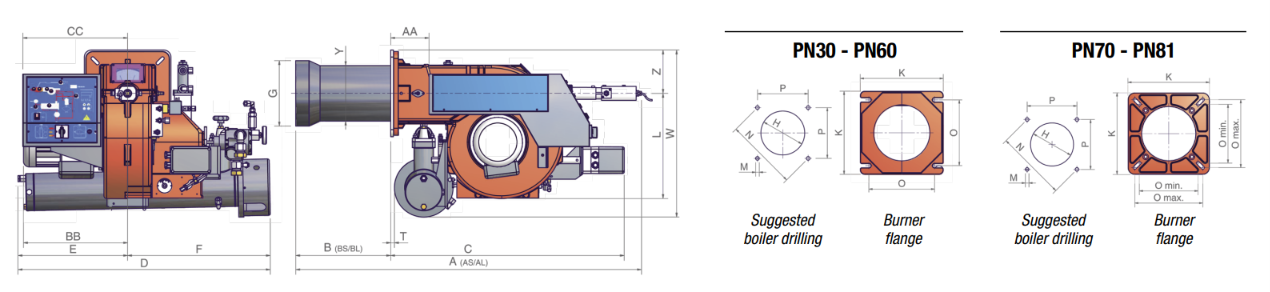

PN70 Dimension

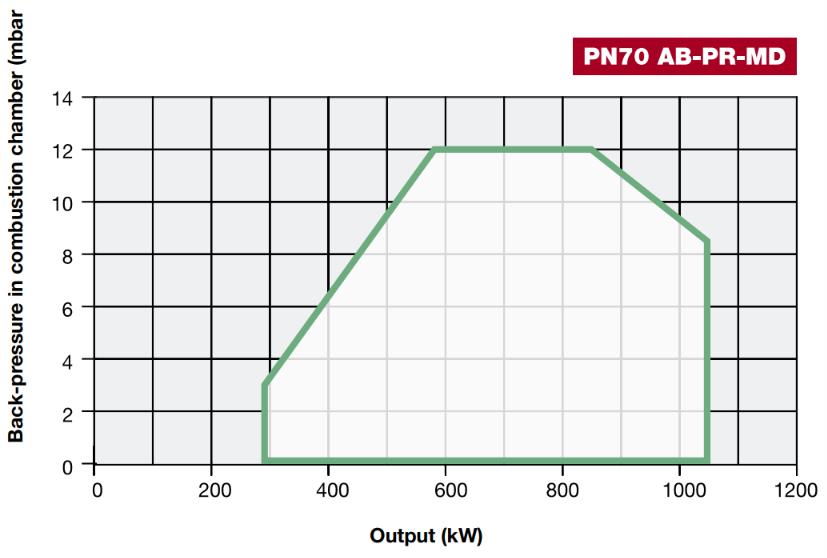

Performance Curves
